百特科技-Ceramic Resonator陶瓷諧振器

Model	Sample	Technical Characteristics
Model	Sample	P/N ( XXX =Freq.)	Freq. Range (MHz)	Freq. Accuracy @25℃	Temp. Stability -20~+80℃	Aging for 10 years	C1 (pF)	C2 (pF)	Lead No#	Lead Pitch (mm)

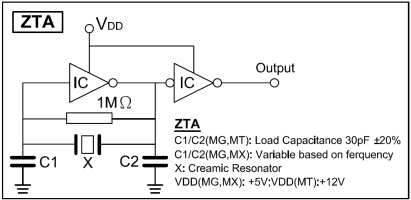

ZTA Series 2.0~32.00MHz		ZTA XXX MG	2.0-4.91	±0.5%	±0.3%	±0.3%	33	33	2	5
		ZTA XXX MT	5.0-13.0	±0.5%	±0.3%	±0.3%	33	33	2	5
		ZTA XXX MX	13.0-32.0	±0.5%	±0.3%	±0.3%	15	15	2	5

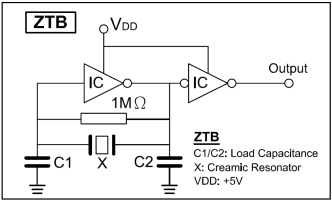

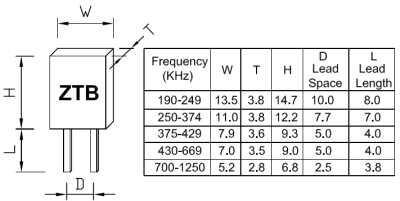

ZTB Series 190~1250KHz		ZTB XXX D	190-249	±1KHz	±0.3%	±0.5%	330	470	2	10
		ZTB XXX D	250-374	±1KHz	±0.3%	±0.5%	220	470	2	7.7
		ZTB XXX P	375-429	±2KHz	±0.3%	±0.5%	120	470	2	5
		ZTB XXX E	430-449	±2KHz	±0.3%	±0.5%	100	100	2	5
		ZTB XXX E	450-509	±2KHz	±0.3%	±0.5%	100	100	2	5
		ZTB XXX P	510-699	±2KHz	±0.3%	±0.5%	100	100	2	5
		ZTB XXX J	700-999	±0.5%	±0.3%	±0.5%	100	100	2	2.5
		ZTB XXX MJ	1000-1250	±0.5%	±0.3%	±0.5%	100	100	2	2.5

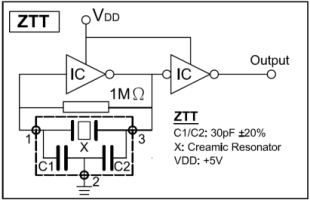

ZTT Series 2.0~32.00MHz With Built-in Load Capacitor		ZTT XXX MG	2.0-4.91	±0.5%	±0.3%	±0.3%	--	--	3	2.5
		ZTT XXX MT	5.0-13.0	±0.5%	±0.3%	±0.3%	--	--	3	2.5
		ZTT XXX MX	13.0-32.0	±0.5%	±0.3%	±0.3%	--	--	3	2.5
