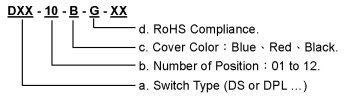

Type Designation:

Slide Type Dip Switch

(DS Series)

Gold-plated terminals.

High reliability.

Double contacts offer.

Low contact resistance.

Self-clean on contact area.

1~12 position

Color: Red, Blue, Black.

All materials are UL94V-0.

RoHS Compliance.

ELECTRICAL
Electrical life : 2000 operation cycles per switch 24VDC, 25mA.
Non-Switching Rating : 100mA, 50 VDC
Switching Rating : 25mA, 24VCD.
Contact resistance :

   (a) 50mΩ max. at initial
   (b) 100mΩ max. after life test.
Insulation resistance : 100MΩ min. (at 500VDC)
Dielectric Strength : 500VAC/1 minute.
Capacitance : 5pF max.
Circuit : Single pole single throw.

MECHANICAL
Mechanical life : 2000 operations per cycle switch
Operation Force : 800gf max.
Stroke : 2.0mm
Operation Temp : -25° C to +70° C
Storage Temp : -40° C to +85° C

Piano Type Dip Switch

(DPL Series)

Gold-plated terminals.

High reliability.

Double contacts offer.

Low contact resistance.

Self-clean on contact area.

2~12 position

Color: Red, Blue, Black.

All materials are UL94V-0.

RoHS Compliance.

ELECTRICAL
Electrical life : 2000 operation cycles per switch 24VDC, 25mA.
Non-Switching Rating : 100mA, 50 VDC
Switching Rating : 25mA, 24VCD.
Contact resistance :

   (a) 50mΩ max. at initial
   (b) 100mΩ max. after life test.
Insulation resistance : 100MΩ min. (at 500VDC)
Dielectric Strength : 500VAC/1 minute.
Capacitance : 5pF max.
Circuit : Single pole single throw.

MECHANICAL
Mechanical life : 2000 operations per cycle switch
Operation Force : 800gf max.
Stroke : 2.0mm
Operation Temp : -25° C to +70° C
Storage Temp : -40° C to +85° C

Right Angle Type Dip Switch

(DRA Series)

Gold-plated terminals.

High reliability.

Double contacts offer.

Low contact resistance.

Self-clean on contact area.

2~12 position

Color: Red, Blue, Black.

All materials are UL94V-0.

RoHS Compliance.

ELECTRICAL
Electrical life : 2000 operation cycles per switch 24VDC, 25mA.
Non-Switching Rating : 100mA, 50 VDC
Switching Rating : 25mA, 24VCD.
Contact resistance :

   (a) 50mΩ max. at initial
   (b) 100mΩ max. after life test.
Insulation resistance : 100MΩ min. (at 500VDC)
Dielectric Strength : 500VAC/1 minute.
Capacitance : 5pF max.
Circuit : Single pole single throw.

MECHANICAL
Mechanical life : 2000 operations per cycle switch
Operation Force : 800gf max.
Stroke : 2.0mm
Operation Temp : -25° C to +70° C
Storage Temp : -40° C to +85° C

Half Pitch Type Dip Switch

(HRM Series)

Half Pitch (1.27mm) terminal.

Gold-plated terminals.

SMD Type (Reel).

2~10 position

All materials are UL94V-0.

RoHS Compliance.

ELECTRICAL

Electrical life : 1000 operation cycles per switch 24VDC, 25mA.
Non-Switching Rating : 100mA, 50 VDC
Switching Rating : 25mA, 24VCD.
Contact resistance : 100mΩ max. at initial
Insulation resistance : 100MΩ min. (at 100VDC)
Dielectric Strength : 300VAC/1 minute.
Capacitance : 5pF max.
Circuit : Single pole single throw

MECHANICAL

Mechanical life : 1000 operations per cycle switch
Operation Force : 500gf max.
Stroke : 0.65mm
Operation Temp : -25° C to +70° C
Storage Temp : -40° C to +85° C

Machine Insertable Type Dip Switch

(DMI Series)

Manual or automatic

    insertion PCB

Gold-plated terminals.

Low contact resistance.

Self-clean on contact area.

1~12 position

All materials are UL94V-0.

RoHS Compliance.

ELECTRICAL
Electrical life : 2000 operation cycles per switch 24VDC, 25mA.
Non-Switching Rating : 100mA, 50 VDC
Switching Rating : 25mA, 24VCD.
Contact resistance :

   (a) 50mΩ max. at initial
   (b) 100mΩ max. after life test.
Insulation resistance : 100MΩ min. (at 500VDC)
Dielectric Strength : 500VAC/1 minute.
Capacitance : 5pF max.
Circuit : Single pole single throw.

MECHANICAL
Mechanical life : 2000 operations per cycle switch
Operation Force : 600gf max.
Stroke : 0.9mm
Operation Temp : -25° C to +70° C
Storage Temp : -40° C to +85° C

Surface Mounting Type Dip Switch

(DSM Series)

SMD Type (Reel).

Gold-plated terminals.

Low contact resistance.

Self-clean on contact area.

Double contacts offer.

1~12 position

All materials are UL94V-0.

RoHS Compliance.

ELECTRICAL
Electrical life : 2000 operation cycles per switch 24VDC, 25mA.
Non-Switching Rating : 100mA, 50 VDC
Switching Rating : 25mA, 24VCD.
Contact resistance :

   (a) 50mΩ max. at initial
   (b) 100mΩ max. after life test.
Insulation resistance : 100MΩ min. (at 500VDC)
Dielectric Strength : 500VAC/1 minute.
Capacitance : 5pF max.
Circuit : Single pole single throw.

MECHANICAL
Mechanical life : 2000 operations per cycle switch
Operation Force : 600gf max.
Stroke : 0.9mm
Operation Temp : -25° C to +70° C
Storage Temp : -40° C to +85° C

SMT Type

Surface Mounting Type
Dimensions: 12x12mm

Contact Rating: 50mA/12VDC
Operation Force: 130/160/260/320/520g
Operation Temp : -25°C~+70°C
HF/RoHS Compliance.

DTSA-2XX

DIP Type

Right Angle
Dimensions: 13.1x14.7mm

Contact Rating: 50mA/12VDC
Operation Force: 160/260/320/520g
Operation Temp.: -25°C~+70°C
HF/RoHS Compliance.

SMT & J SMT Type

Surface Mounting Type
Dimensions: 6.2x6.2mm

Contact Rating: 50mA/12VDC
Operation Force: 100/160/260/320/520g
Operation Temp.-25C~+70C
HF/RoHS Compliance.

DIP Type

Sharp tactile feeling

Dimensions: 6.2x6.2mm

Contact Rating: 50mA/12VDC
Operation Force: 70/100/160/260/320/520g
Operation Temp.-25C~+70C
HF/RoHS Compliance.

SMT & SMT Type

6X6mm Right Angle

Optional ground pin

Contact Rating: 50mA/12VDC
Operation Force: 100/160/260/320/520g
Operation Temp.-25C~+70C
HF/RoHS Compliance.

Thinner type with 2.5-5.25mm height
Ground terminal available
Reflow solderable

Dimensions: 6.2x6mm

Contact Rating: 50mA/12VDC
Operation Force: 100/160/260g
Operation Temp.-25C~+70C
HF/RoHS Compliance.

DIP & SMT Type

Sealed & Washable

Dimensions: 12x12mm

Contact Rating: 50mA/24VDC
Operation Force: 160/260/320/520g
Operation Temp.-40C~+85C
HF/RoHS Compliance.

DIP Type

Sealed & Washable

Dimensions: 6x6mm

Contact Rating: 50mA/12VDC
Operation Force: 160/180/260/360g
Operation Temp.-25C~+70C
HF/RoHS Compliance.

DIP & SMT Type

Sharp click feeling

Dimensions: 3.5x6mm

Contact Rating: 50mA/12VDC
Operation Force: 125/160/260/320/520g
Operation Temp.-25C~+70C
HF/RoHS Compliance.

SMT Type ; Thinner (H:2.5mm)
High density mounting
With anti-ESD of ground terminal

Dimensions: 3.7x6.0mm

Contact Rating: 50mA/12VDC
Operation Force: 160/260g
Operation Temp.-25C~+70C
HF/RoHS Compliance.

SMT Type

Side/Vertical Push
Dimensions: 3.5x4.7mm

Contact Rating: 50mA/12VDC
Operation Force: 160/220g
Operation Temp.-25C~+70C
HF/RoHS Compliance.

Flat Type

(ERD1XXXX)

PIN OUT 3:3

10x10mm Size.

All plastics UL 94V -0 grade fire retardant.

Reliable contact and long-term stability.

Binary decimal (8 or 10 positions) and hexadecimal (16 positions), real and
complementary codes available.

Gold plated contact to ensure low contact resistance.

Pin-out is compatible with most of current equivalents.

Number of positions: 08, 10, 16

RoHS Compliance.

ELECTRICAL
Contact rating: switching 25mA, 24VDC
                       non-switching 100mA

Contact resistance (initial) 100mΩ Max.

Insulation resistance 1000MΩ Min. at 100VDC

Dielectric strength 250VAC Min. for 60 seconds

MECHANICAL
Operation Temp : -25° C to +70° C
Storage Temp : -40° C to +85° C

Operation force 500gf-cm Max.

Mechanical life 1000 steps.

PACKING : Tape & Reel Packaging

Shaft Type

(ERD2XXXX)

PIN OUT 3:3

Flat Type

(ERD4XXXX)

PIN OUT 1:4

Shaft Type

(ERD5XXXX)

PIN OUT 1:4
